With cool weather upon us, now is the time to have maintenance on your building’s chilled water system. If your chiller, condensate pans or cooling tower could use a coating system to protect and preserve your equipment, contact us today! We probably already work for your chill water maintenance provider, Carrier, JCI-York, Daikin-Mcquay, Trane and others. Plant Equipment & Services uses the highest quality of products and offers the best service and warranties compared to anyone else in the industry.
Due to new developments in centrifugal chillers with magnetic bearing chillers, and new monitoring technologies, chiller maintenance has advanced significantly. The industry has been moving toward demand maintenance programs and away from pre-determined scheduled maintenance, as a result of remote monitoring. Whichever program you choose to use, here are 10 maintenance tips that apply to most chillers to help maintain high efficiency.
Chiller Maintenance Tips for High Efficiency
Keep a Daily Log
The first step toward maintaining an efficiently-run chiller plant is keeping a daily log. This log allows you to build a history of operating conditions including temperatures, pressures, fluid levels and flow rates. With remote monitoring technologies, you can continually check machines rather than monthly or every other month. It also allows you to easily generate trend reports that help to identify maintenance needs before they become an issue.
Keep Tubes Clean for Efficient Heat Transfer
Because heat transfer efficiency has the greatest single effect on chiller performance, it is fundamental to have clean heat transfer to maintain high efficiency. Thermal resistance is increased, while overall performance is reduced with contaminants such as minerals, scale, mud, algae and other impurities. A good indicator of heat transfer efficiency are the approach temperatures. High approach temperatures are key indicators that heat transfer efficiency is decreasing. Condenser tubes should either be brushed cleaned at least annually, or per demand maintenance schedule to keep them free of contaminants.
Treat Condenser Water to Prevent Scale, Corrosion
Water treatment of some sort to eliminate scale, corrosion and biological growth is required for all condenser water loops using open cooler sources (such as atmospheric cooling towers). These all lead to fouling in the condensers, thus impeding heat transfer and decreasing tube and piping effectiveness. Chilled water loops should be inspected once a year or regularly with remote monitoring for general water quality and evidence of corrosion.
Lower Entering Water Temperature
You can improve the chiller’s efficiency by lowering the temperature of the entering condenser. The operator will lower the chilled water set point on some building systems to overcome air handler deficiencies such as dirty coils. Although this cures the symptom, it does not cure the problem, and makes the chiller work harder for the same net cooling effect.
Keep Chilled Water Flow Rate Between 3 to 12-ft per Second
The chiller’s performance can be affected by changing the chilled water flow rate. The chiller efficiency can decrease if there is too low of a flow rate, ultimately leading to laminar flow. Typically, the minimum flow rate is around 3-ft. per second (FPS). If the flow rate is too high, this can lead to vibration, noise and tube erosion. The maximum recommended flow rate is usually around 12 FPS.
Maintain Adequate Refrigerant Charge
The actual amount of cooling a chiller provides is dependent on how much refrigerant it moves through the compressor. It is critical to maintain the proper level of refrigerant for the conditions desired. Efficiency and reliability of the system can be decreased by refrigerant leaks, as well as air and moisture introduced into the system. Having a lower refrigerant charge will cause the compressor to work harder for less cooling effect.
Prevent Inefficiencies Caused by Non-Condensables
Because their evaporators operate in a vacuum, non-condensables such as air and moisture leak into low pressure chillers. The real efficiency of the chiller can be lowered from the rated performance by as much as 4% at 60% load and 7% at 100% load by non-condensables. The effect of non-condensables can be minimized by purge units.
Check Operation of Starters and Motors
Check the safety and sensor calibrations on microprocessor controls (consult manufacturer’s guidelines) for efficient operation of starters and motors. Once this has been done, check electrical connections, wiring and switchgear related to the chiller for hot spots and worn contacts. Test electrical motor windings for insulation resistance to ground and winding-to-winding to prevent insulation faults. The shaft seal of open driver motors should be checked for possible refrigerant leaks, and clean motor cooling air vents to ensure maximum cooling effect.
PES Services
Here at PES we can provide all your chiller corrosion maintenance needs. We are the leaders in coating chillers and we also offer the best warranty in the state! The coatings we use include:
- PES 201: a ceramic filled paste that helps build up the tube sheet flush with the end of the tubes, and any irregular surfaces caused by corrosion and erosion.
- PES 202: a ceramic filled brushable coating giving a chemical and abrasion resistant surface.
- PES 203: a ceramic filled brushable fluid that leaves a smoother than polished stainless steel finish.
Chiller Coatings Done by PES:

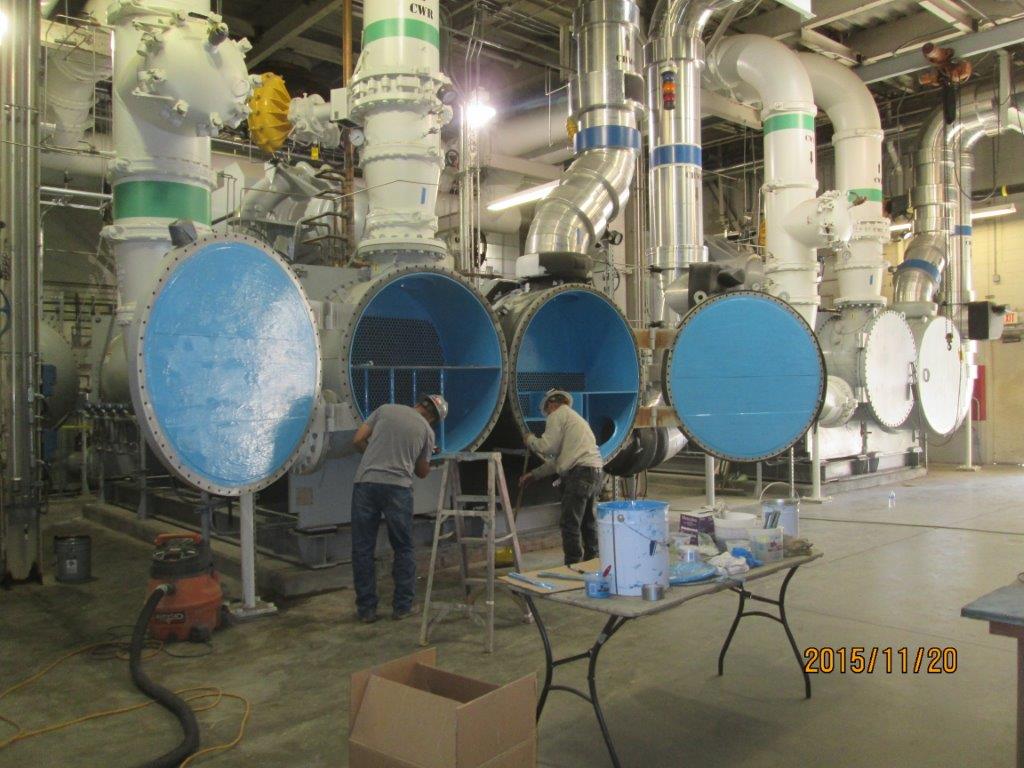

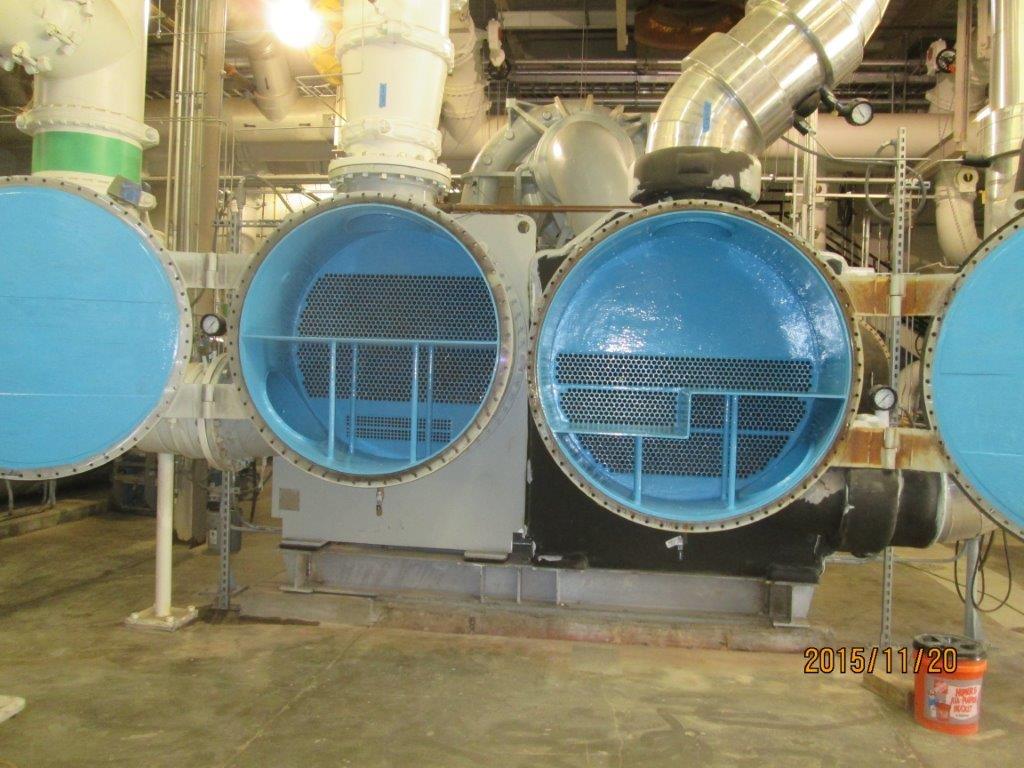

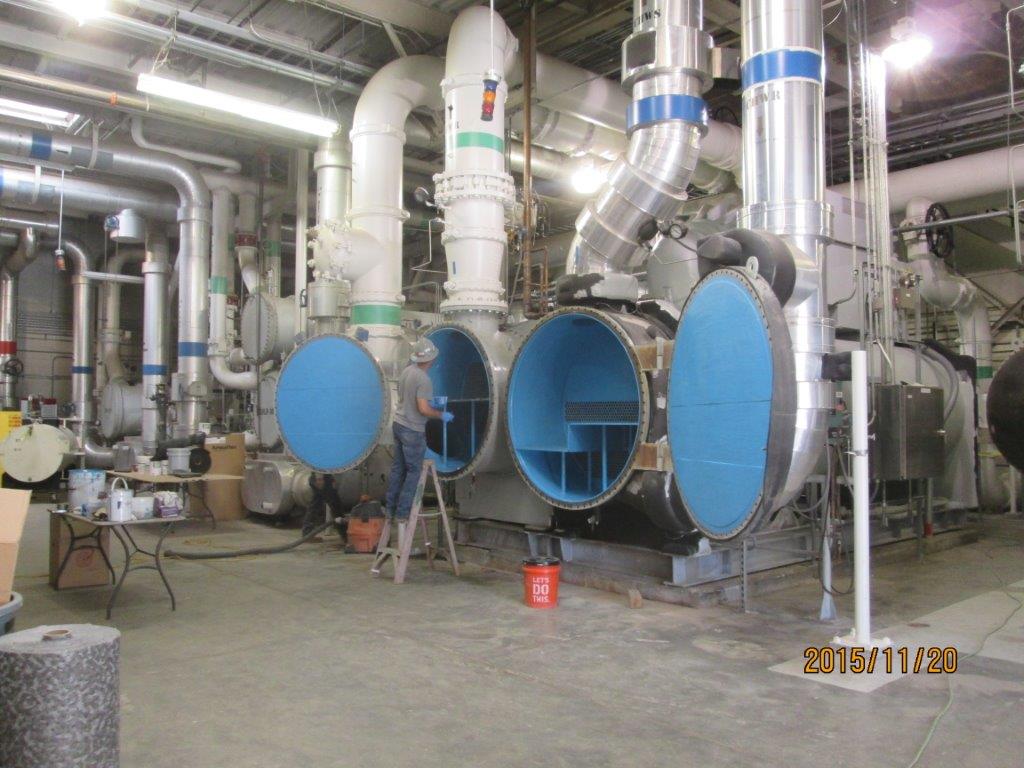

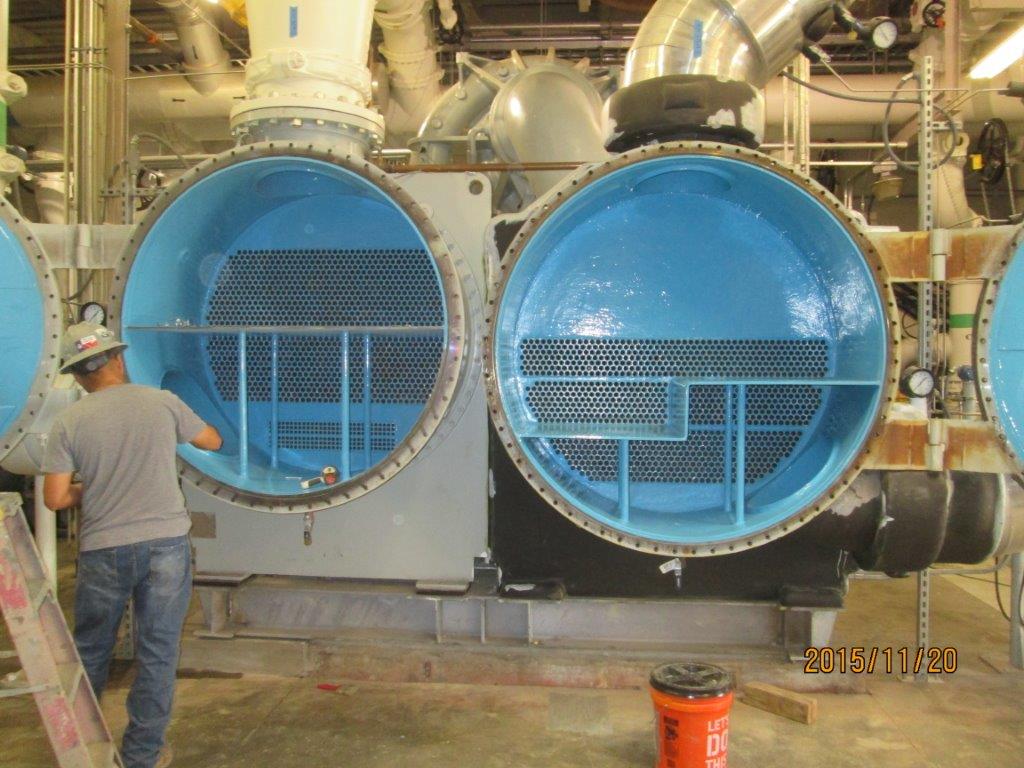

Condenser
Before:
After:
Endbell
Before:

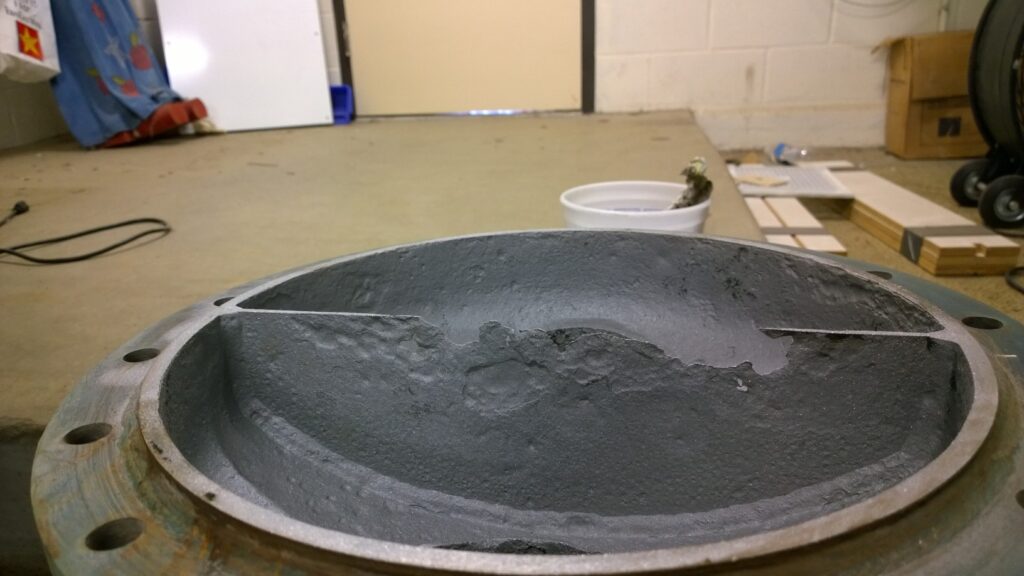

Preparation:

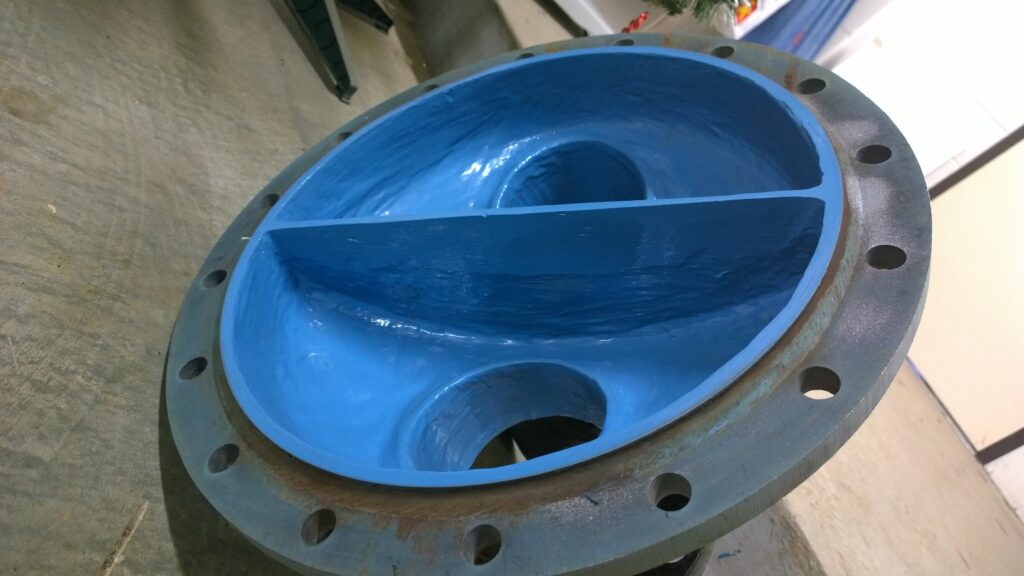

After:
Tubesheet

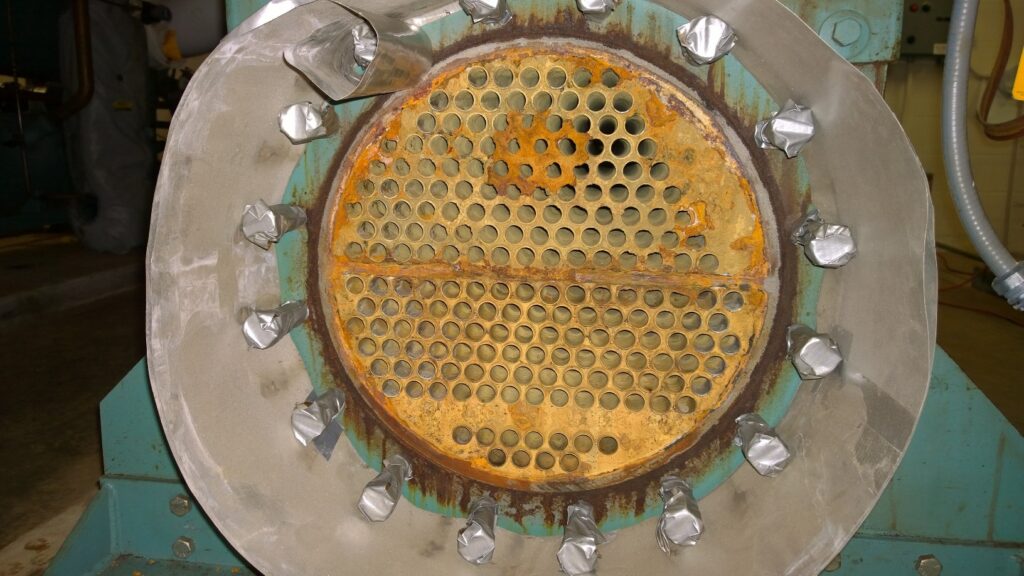

Before:

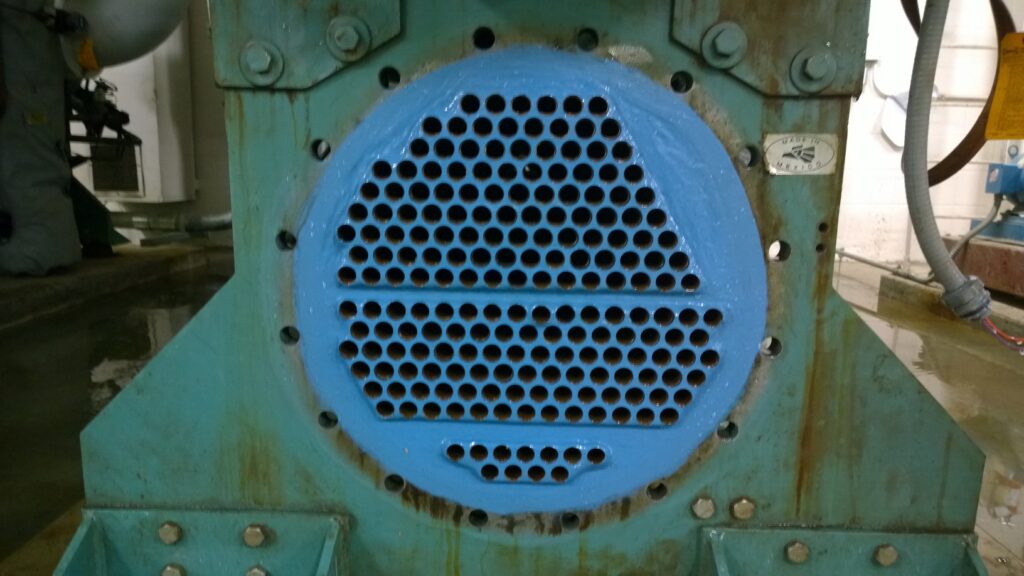

After:
