PES 102 Power Metal Repair Fluid

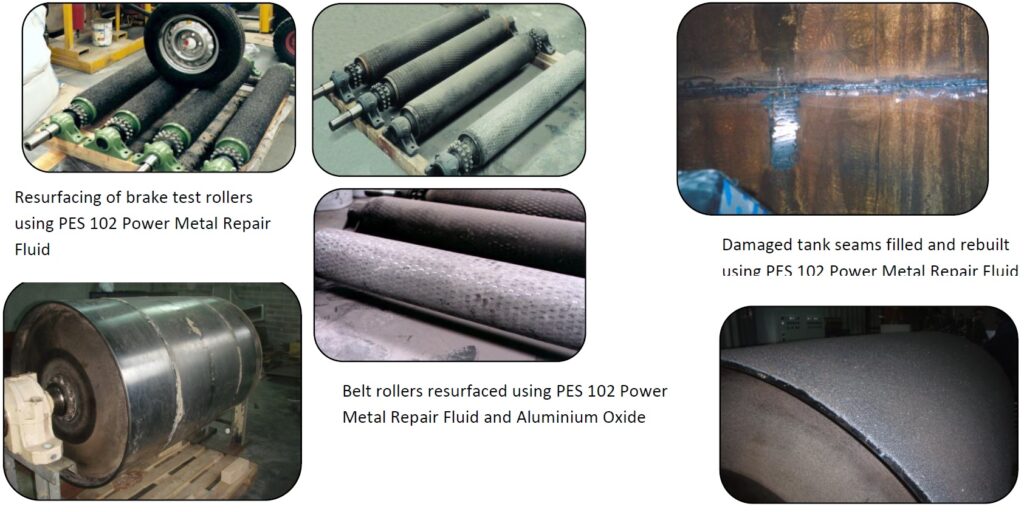

102 Metal Repair Fluid is a two component solvent free epoxy metal fairing compound. The product has been designed for use on a wide range of metallic surfaces and once cured is readily machinable. The product is suitable for filling mechanically or abrasive blast cleaned surfaces where excessive pitting and scarring has been caused by corrosion or chemical attack. The material can also be used with aluminum oxide aggregates to create anti-slip finishes on metallic surfaces such as belt rollers, brake test rollers and steps.
Main Characteristics
- Two component
- Solvent free epoxy
- Usable life 30 minutes @ 68°F (20°C)
- Touch dry 1 hour @ 68° (20°C)
- Machinable 2 hours @ 68°F (20°C)
- 100 Rockwell R Hardness (Once fully cured)
- Applied by brush or applicator tool
- Available in 1kg, 2kg, 3kg, & 30kg pack sizes
Mechanical Properties
Adhesion
Tensile Shear to ASTM D1002 – 2630 psi (185kg/cm2)
Comprehensive Strength
Tested to ASTM D 695 – 15,300psi (1075kg/cm2)
Corrosion Resistance
Tested to ASTM B117 – Minimum 5000 hours
Flexural Strength
Tested to ASTM D790 – 10,000psi (703kg/cm2)
Heat Resistance
Suitable for water immersion up to 158°F (70°C) and intermittent contact with steam up to 248°F (120°C). Dry heat resistance up to 392°F (200°C).
PES 102 for Electrical Power Plant

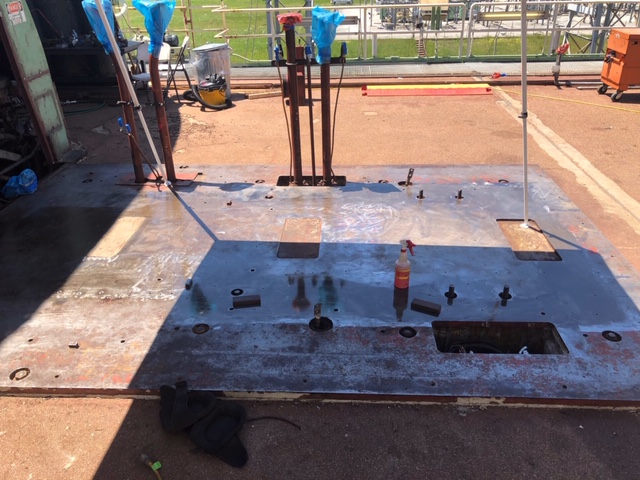

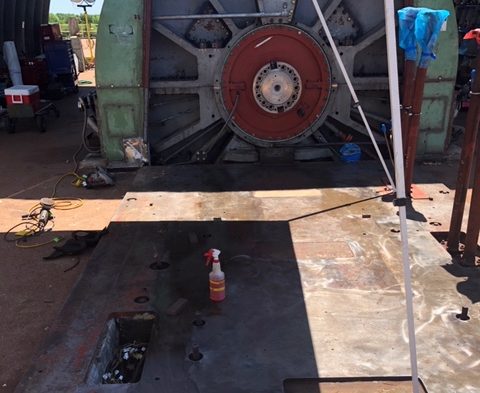

This spring a customer working at an electrical power plant called to request our service supervisor come to his facility and see if we could assist him in grouting in a Sole Plate. Sole Plates are used to support and anchor large horsepower motors, gearboxes, generators, and pumps. Having any void or cavities under these can cause many problems.

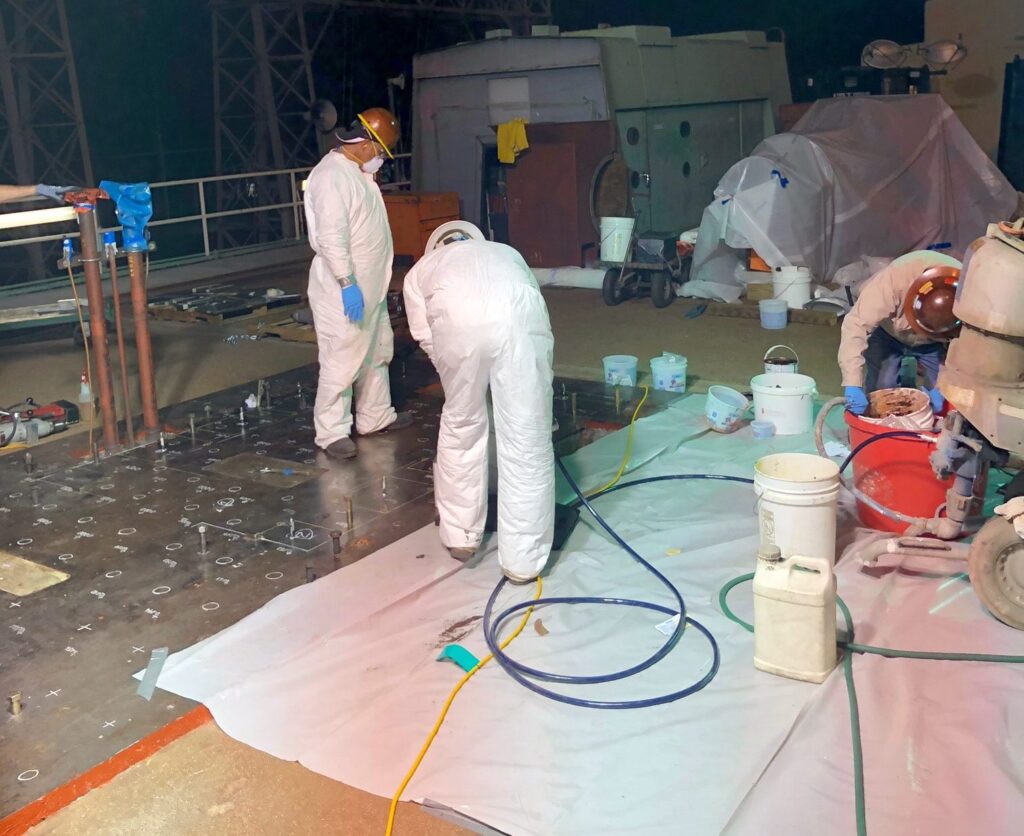

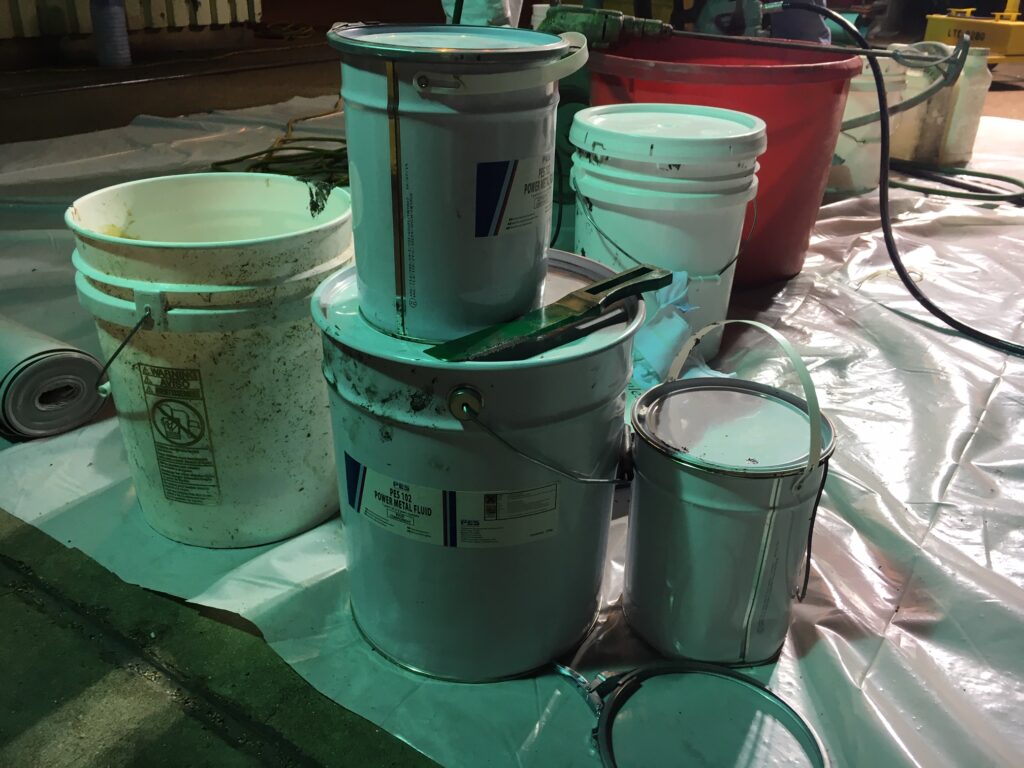

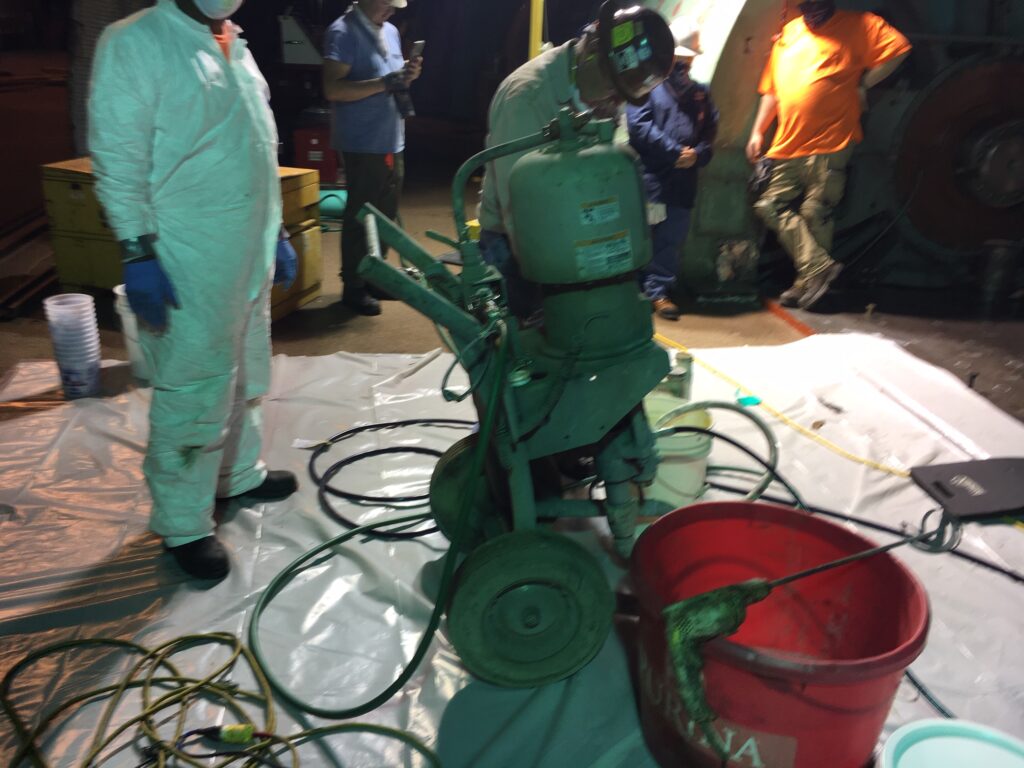

Before pumping PES 102 Power Metal Repair Fluid using a 45 to 1 bull dog pump, all plate edges and inserts were caulked using standard RTV silicone caulk to seal these edges. The plate had been pre-drilled and tapped to accept 1/8″ pipe nipples. After the plate was bolted in place, compressed air was used to assure no obstructions were present to hamper the pumping process, and special one way valves-certs were installed on the end of the pipe nipples. The pump’s whip hose was fitted with a special female connection, making moving around and pumping fluid in all areas of the plate easy.
For more information about PES 102, don’t hesitate to contact us here at PES Solutions with the link below!
