PES 202 Ceramic Repair Fluid is a two component solvent free epoxy metal repair fluid. The product has been designed for use on a wide range of metallic surfaces subject to abrasion and impact. The product is suitable for emergency repairs or part of planned maintenance to equipment such as worn impellers, damaged valves, eroded separator housings, damaged pump casings, eroded pipe work, propellers, bow thrusters, rudders, corroded water boxes and eroded end plates and tube sheets.
Main Characteristics
- Two component
- Solvent free epoxy
- Usable life 25 minutes @ 68°F (20°C)
- Touch dry 90 minutes @ 68°F (20°C)
- Full cure 2 days @ 68°F (20°C)
- 100 Rockwell R Hardness (Once fully cured)
- Applied by brush or applicator tool
- Available in 500gm, 1kg, 3kg, 27kg pack sizes
Mechanical Properties
Adhesion
Tensile Shear to ASTM D1002 – 2875psi (2o2kg/cm²)
Comprehensive Strength
Tested to ASTM D 695 – 13650psi (960kg/cm²)
Corrosion Resistance
Tested to ASTM B117 – Minimum 5000 hours
Flexural Strength
Tested to ASTM D790 – 9000psi (635kg/cm²)
Heat Resistance
Suitable for water immersion up to 158°F (70°C) and intermittent contact with steam up to 248°F (120°C). Dry heat resistance up to 302°F (150°C).

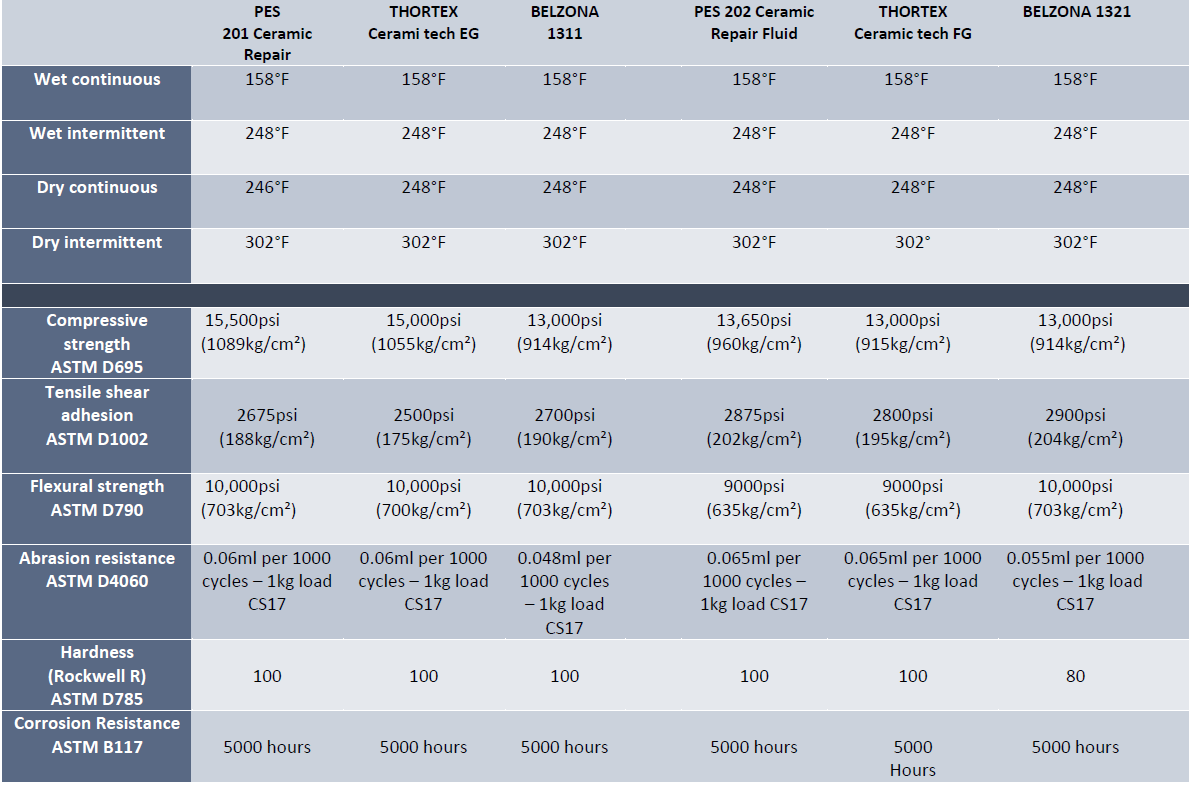

Comparison with Belzona 1311/1321 & Thorax Cerami Tech EG/ Cerami Tech FG
