PES 205 Ceramic HT Fluid
PES 205 Ceramic HT Fluid is a two component solvent free epoxy novolac coating designed for high temperature immersion conditions. The product, once cured, can withstand continuous immersion conditions up to 266ºF (130°C) and can upgrade the performance of conventional materials of construction. The material can withstand high temperature contact with water, salt water, crude oil, various industrial chemicals and pressurized steam. PES 205 Ceramic HT Fluid is ideal for repairs to pumps, filters, process equipment, separators, scrubber units, clarifiers, evaporators and distillation units.

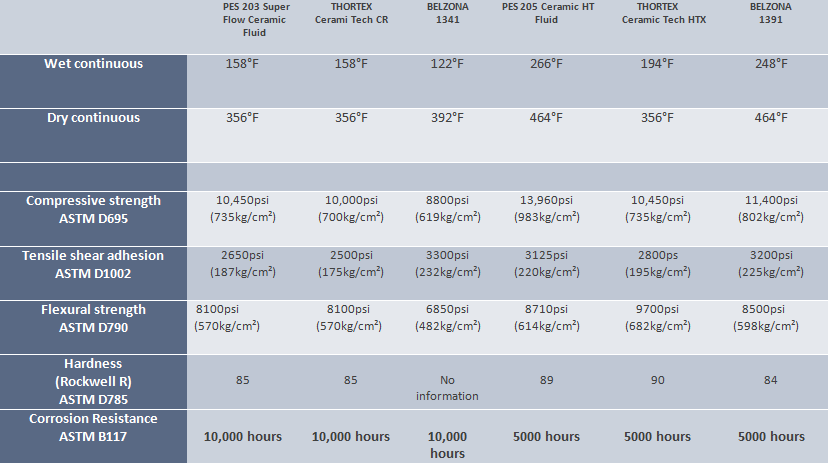

PES Ceramic HT FLUID Compared to Others
Engineering Repair
PES 203 Flow Ceramic Fluid
- Wet continuous: 158°F
- Dry continuous: 356°F
- Compressive strength ASTM D695: 10,450psi (735kg/cm²)
- Tensile shear adhesion ASTM D1002: 2650psi (187kg/cm²)
- Flexural strength ASTM D790: 8100psi (570kg/cm²)
- Hardness (Rockwell R) ASTM D785: 85
- Corrosion Resistance ASTM B117: 10,000 hours
THORTEX Ceramic Tech CR
- Wet continuous: 158°F
- Dry continuous: 356°F
- Compressive strength ASTM D695: 10,000psi (700kg/cm²)
- Tensile shear adhesion ASTM D1002: 2500psi (175kg/cm²)
- Flexural strength ASTM D790: 8100psi (570kg/cm²)
- Hardness (Rockwell R) ASTM D785: 85
- Corrosion Resistance ASTM B117: 10,000 hours
BELZONA 1341
- Wet continuous: 122°F
- Dry continuous: 392°F
- Compressive strength ASTM D695: 8800psi (619kg/cm²)
- Tensile shear adhesion ASTM D1002: 3300psi (232kg/cm²)
- Flexural strength ASTM D790: 6850psi (482kg/cm²)
- Hardness (Rockwell R) ASTM D785: No information
- Corrosion Resistance ASTM B117: 10,000 hours
PES 205 Ceramic HT Fluid
- Wet continuous: 266°F
- Dry continuous: 464°F
- Compressive strength ASTM D695: 13,960psi (983kg/cm²)
- Tensile shear adhesion ASTM D1002: 3125psi (220kg/cm²)
- Flexural strength ASTM D790: 8710psi (614kg/cm²)
- Hardness (Rockwell R) ASTM D785: 89
- Corrosion Resistance ASTM B117: 5000 hours
THORTEX Ceramic Tech HTX
- Wet continuous: 194°F
- Dry continuous: 356°F
- Compressive strength ASTM D695: 10,450psi (735kg/cm²)
- Tensile shear adhesion ASTM D1002: 2800psi (195kg/cm²)
- Flexural strength ASTM D790: 9700psi (682kg/cm²)
- Hardness (Rockwell R) ASTM D785: 90
- Corrosion Resistance ASTM B117: 5000 hours
BELZONA 1391
- Wet continuous: 248°F
- Dry continuous: 464°F
- Compressive strength ASTM D695: 11,400psi (802kg/cm²)
- Tensile shear adhesion ASTM D1002: 3200psi (225kg/cm²)
- Flexural strength ASTM D790: 8500psi (598kg/cm²)
- Hardness (Rockwell R) ASTM D785: 84
- Corrosion Resistance ASTM B117: 5000 hours
